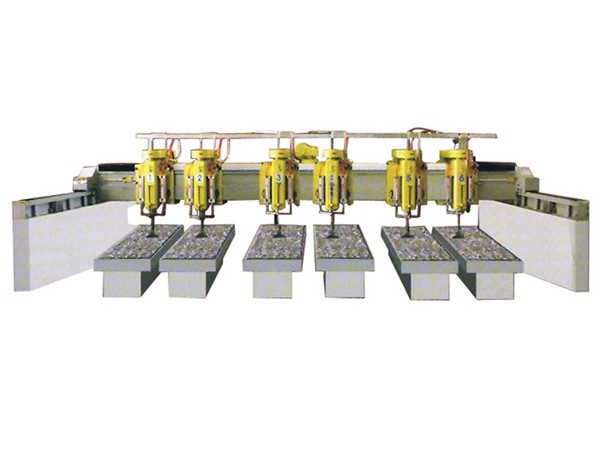

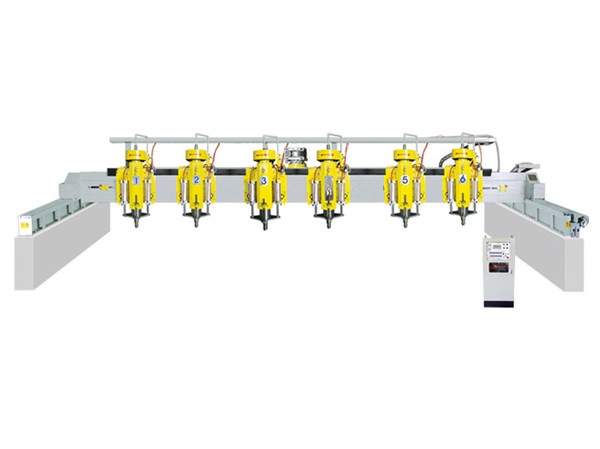

JNAP-6H Automatic Bridge Stone Slab Polishing Machine
Technical data
Model no.
JNAP-6H
Number of grinding heads
6pcs
Grinding head diameter
200mm
Max. grinding width
800-900mm
Grinding plate height
10-200mm
Grinding plate length
3200/4000/5200mm
Side beam length
4700/5400/6500mm
Beam swing speed
0-13m/min
Installation length in horizontal direction
8500mm
Main motor power/total power
7.5KW/50.2KW
Hourly water consumption
8m3
Air supply pressure
0.7Mpa
Weight
7000KGS
Features: 1.Based on advantage of manual polisher and years of experience of slab cutting and polishing, the newly designed semi-automatic polisher equals series workload of 6 manual polishers. The pressurization is pneumatic. Multiple cutting and polishing patterns are provided. All polishing head works simultaneously and automatically in the same procedure as manual polishers.
2.By reducing operator to 1-2, it fundamentally reduces labor intensity and cost and thus improves production efficiency.
3.Components of international qualified brands are applied in composition of electric and pneumatic controlling system, resulting in more credible performance and favorable flatness and gloss.
4.This machine is used to grind and polish granite slabs with the compact and reasonable structure, with a production of 200~350M2 per day;
5.Daily production capacity for 6 heads:400-450m2/day 1200-1300mm width slab
6.More sizes (7 grinding heads, 8 grinding heads and 9 grinding heads) are available upon request.
