Bridge Type Line Cutting Machine/Line Cutter
|
|
Product name : Bridge Type Line Cutting Machine/Line Cutter
Item : JNLC-1600
|
| Details: |

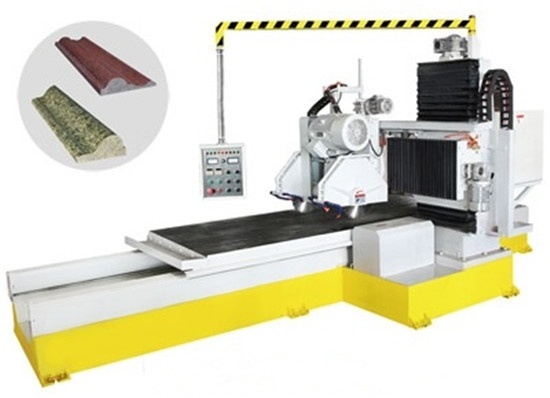

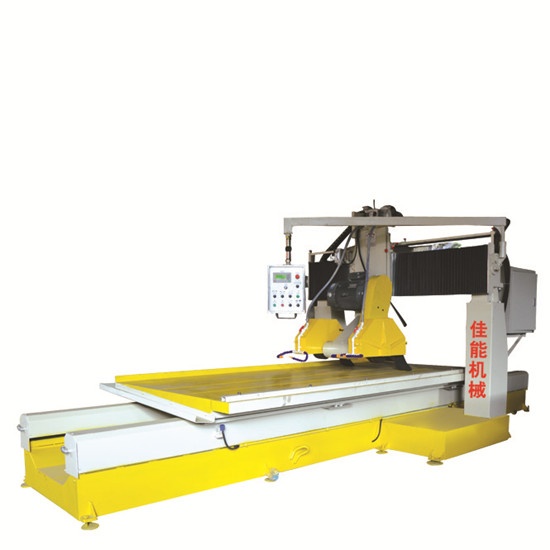

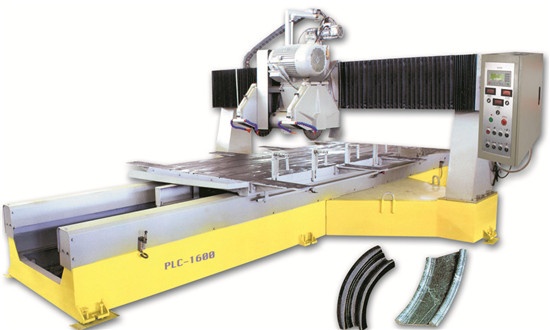

JNLC-1600 Bridge Type Line Cutting Machine/Line Cutter
Features:
1. Gantry structure;
2. Bigger worktable to accommodate more workpieces;
3. Bi-blade design makes operation more efficient;

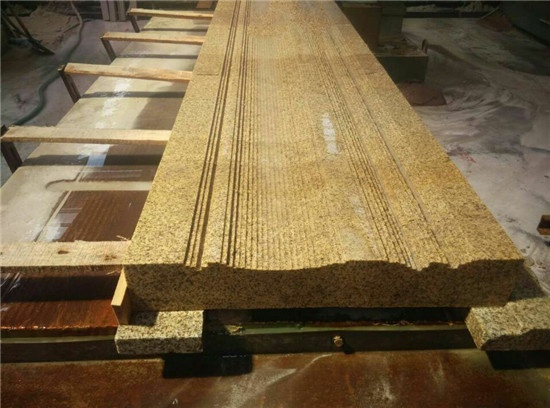

4. Suitable for cutting squre balusters and straight lines;.
5. One horizontal blade can be equipped for stone base flat cutting upon request.
Technical data
|
Model
|
JNLC-1600
|
|
Dimension (L*W*H)
|
6000*2400*2200mm
|
|
Blade diameter
|
350-600mm
|
|
Number of blades
|
2pcs
|
|
Max. cutting length
|
3500mm
|
|
Max. cutting width
|
1650mm
|
|
Max. cutting height
|
500mm
|
|
Operating voltage/frequency
|
380V/3PH/50Hz
|
|
Main motor power
|
5.5Kw
|
|
Total weight
|
5500Kgs
|
|
Water consumption
|
3m³/h
|
|
Packing
|
Seaworthy packing, wrapped by waterproof plastic films and air bubbles
|
|
|
