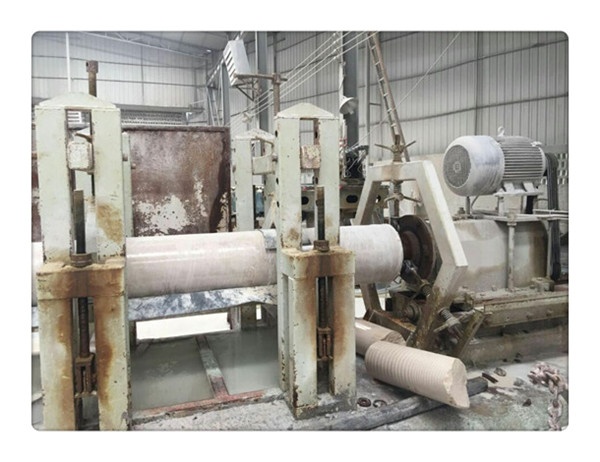

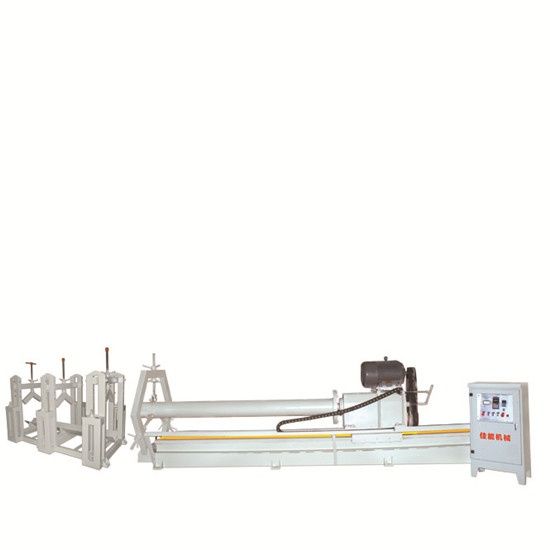

JNCE-3500 Horizontal Column Core Extracting Machine/Column Core Extractor
Features:
1. Easy to operate, safe and stable;
2. Adjustable clamping frame for precise processing;
3. Horizontal design makes it easier for wastewater discharging;
4. Variable-frequency main motor makes it easy to adjust speed;
5. Variable-speed spindle box provides greater torque to drilling drum;

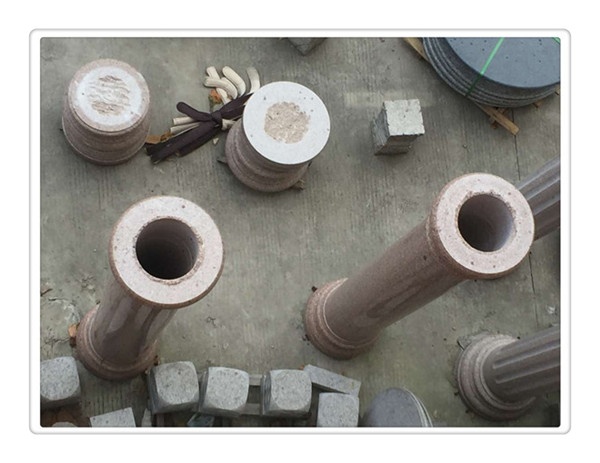

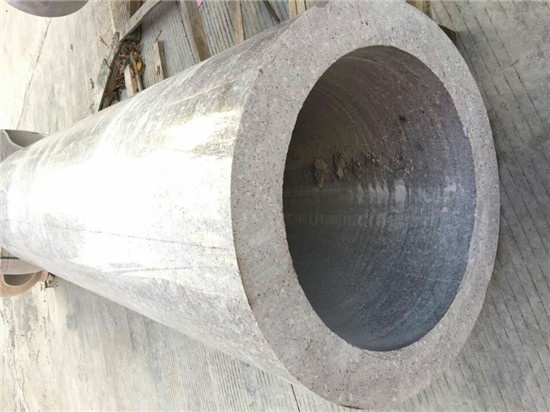

6. Suitable for extracting cores of round columns, etc.
7. More sizes are available upon request.
Technical data
|
Model
|
JNCE-3500
|
|
Dimension (L*W*H)
|
700*1200*800mm
|
|
Max. processing length
|
3500mm
|
|
Max. processing diameter
|
500mm
|
|
Operating voltage/frequency
|
380V/3PH/50Hz
|
|
Main motor power
|
22Kw
|
|
Total weight
|
4000Kgs
|
|
Production capacity
|
2-3m (granite)/h, 8-12m (marble)/h
|
|
Water consumption
|
10m³/h
|
|
Packing
|
Seaworthy packing, wrapped by waterproof plastic films and air bubbles
|
