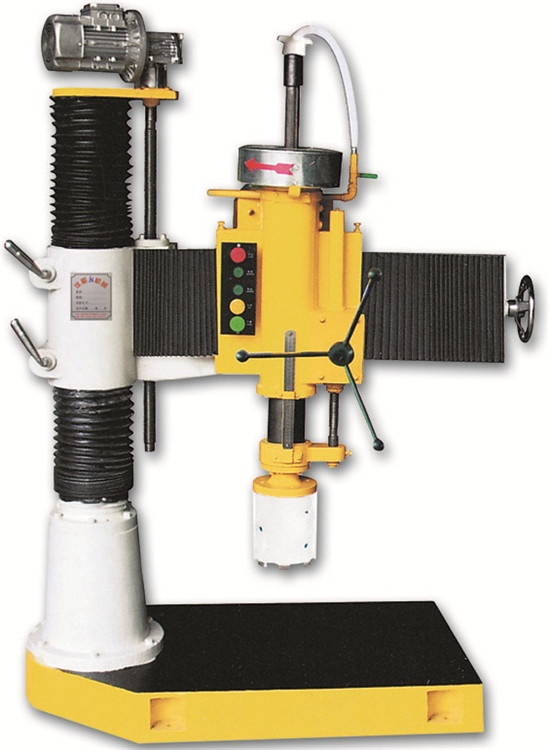

Vertical Column Drilling Machine/Vertical Column Driller
|
|
Product name : Vertical Column Drilling Machine/Vertical Column Driller
Item : JNVD-300
|
| Details: |
JNVD-300 Vertical Column Drilling Machine/Vertical Column Driller
Features:
1. Easy to operate and efficient;
2. Automatic drill comes with an inverter to control drilling speed;
3. Suitable for drilling deep holes of heartstone, tombstone, strip, stone lantern, artware, etc.
4. Horizontal drilling machine is available upon request.
Technical data
|
Model
|
JNVD-300
|
|
Dimension (L*W*H)
|
800*1300*2500mm
|
|
Max. drilling diameter
|
400mm
|
| Max. drilling depth |
400mm |
|
Lifting stroke
|
1400mm
|
|
Operating voltage/frequency
|
380V/3PH/50Hz
|
|
Main motor power
|
7.5/11Kw
|
|
Total weight
|
1200Kgs
|
|
Water consumption
|
3m³/h
|
|
Packing
|
Seaworthy packing, wrapped by waterproof plastic films and air bubbles
|
|
|
