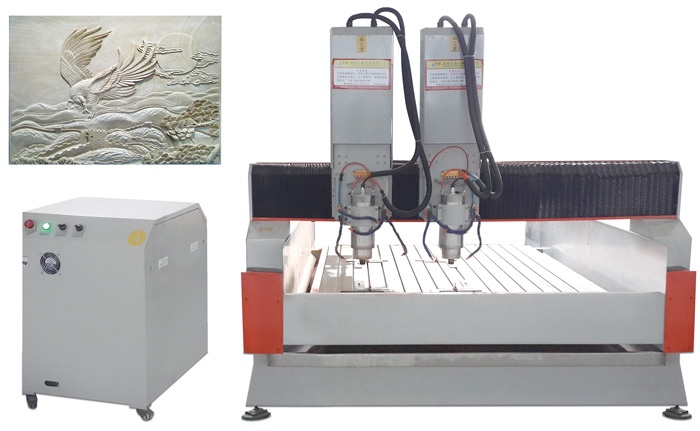

JNEM-2L Two Heads CNC Engraving Machine Technical data
Model number
JNEM-2L
Operation mode
Servo driving system
Dimension (L*W*H)
1800*2700*2300mm
Engraving (Workpiece) size
800mm*2500mm*2pcs 1600mm*2500mm*1pc
Main motor power (water-cooling motor)
5.5Kw*2
Servo motor
Yaskawa (Japan imported)
Spindle
Water-cooling spindle
Spindle rotating speed
8000-24000rpm/min
Operating voltage
380V or 220V/50Hz/3Ph
Hourly water consumption
2m³
Weight
1500Kgs
Packing
Seaworthy packing, wrapped by waterproof plastic films and air bubbles (Regular) or contained in a plywood case (Custom)
Applications:
This multifunctional machine is used to engrave reliefs, characters/letters, artifacts, furniture, doors in marble, granite, limestone, sandstone, basalt, onyx, wood, etc. It can be customized according to customer request.
