Large Statue/Sculpture Engraving Machine/Router
|
|
Product name : Large Statue/Sculpture Engraving Machine/Router
Item : JNEM-1520
|
| Details: |

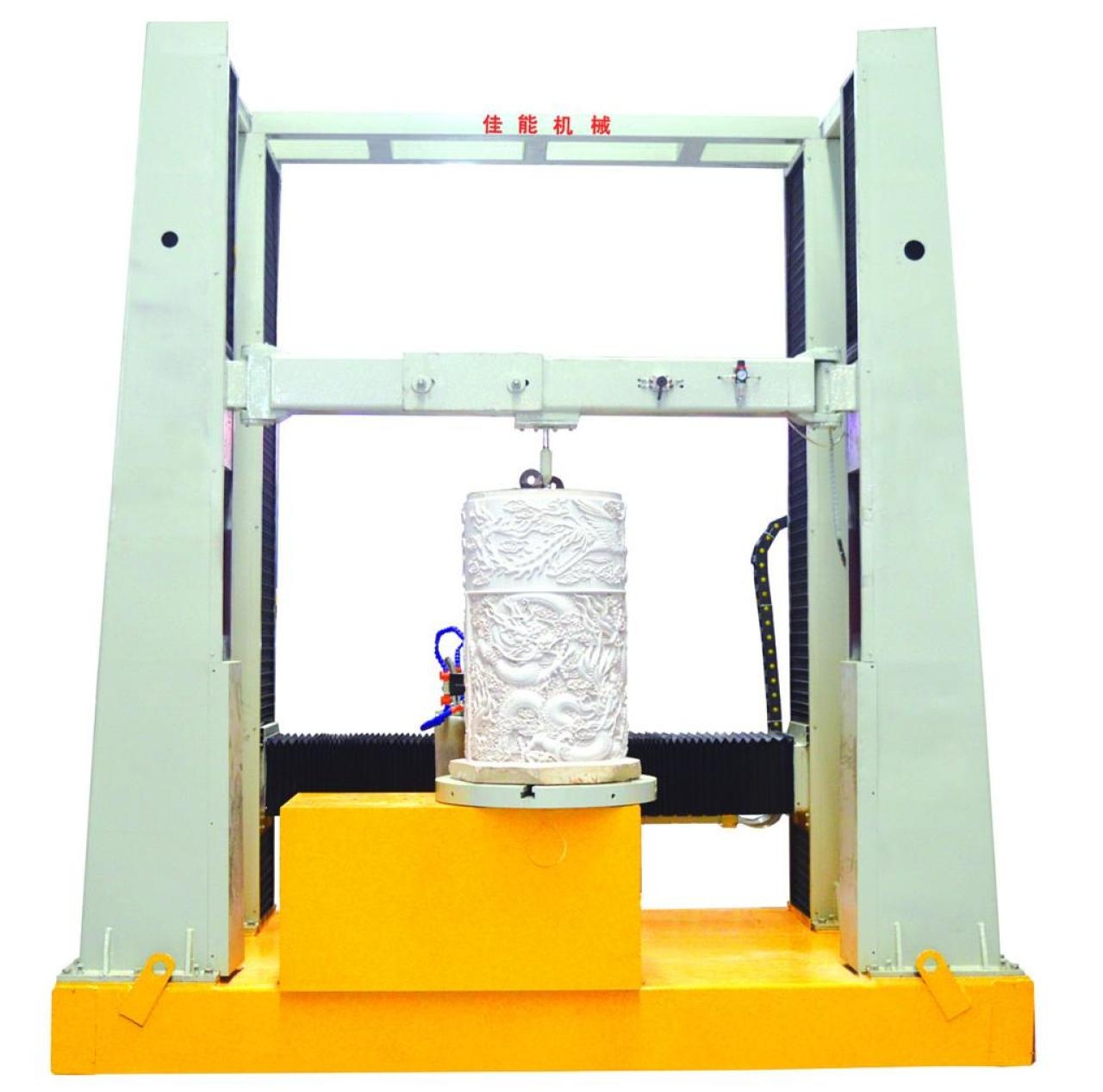

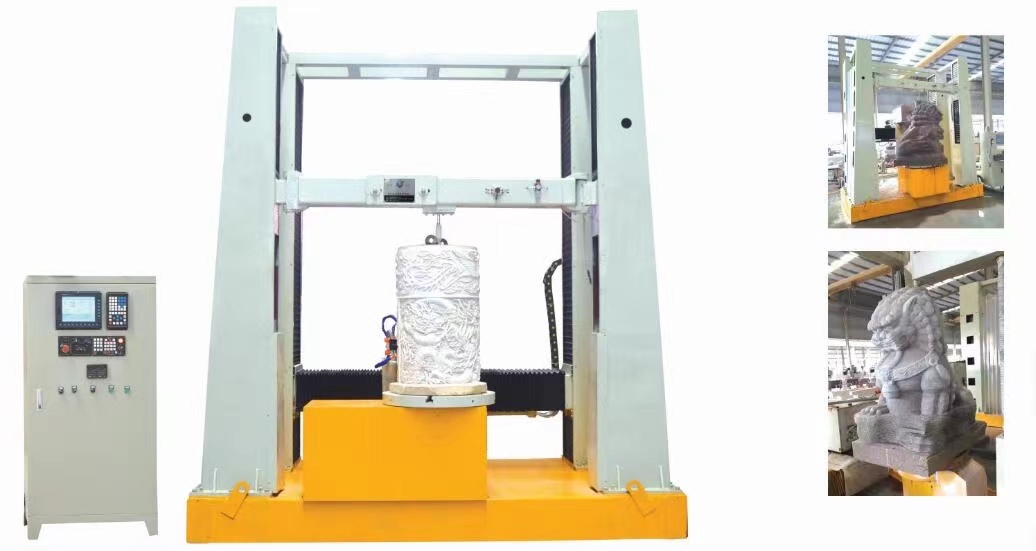

JNEM-1520 CNC Router Machine for Statue Engraving
Features
1.The working shaft is equipped with cutter and router for cutting and engraving;
2.Computer control for easy operation;
3.Compatile with Type3/Artcam/Castmate/Wentai and other CAD/CAM design softwares;
4.Work on G codes;
5.Mainly used for making large statues, figures, pillars, etc.
Technical data
|
Model
|
JNEM-1520
|
|
Dimension (L*W*H)
|
3400×2400×3700mm
|
|
Operating system
|
Shanghai Weihong computer control system
|
|
Working size (Diameter*Height)
|
φ1500mm*H2000mm*1pc
|
|
Guide + lead screw
|
Taiwan brand
|
|

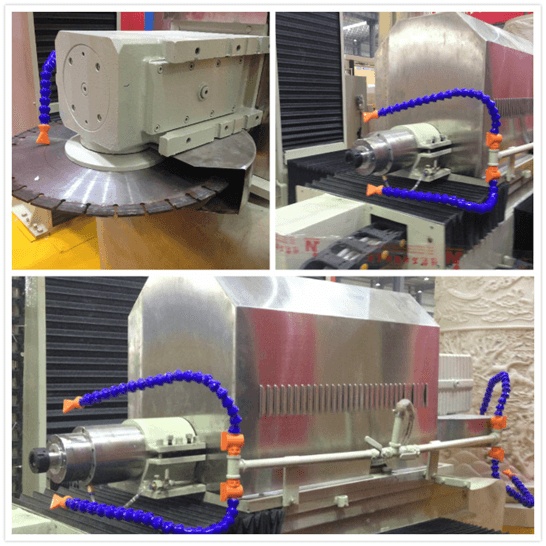

Spindle
|
Water-cooling
|
|
Spindle power
|
7.5Kw*1
|
|
Cutter power
|
11Kw*1
|
|
Spindle rotating speed
|
0-24000rpm/min
|
|
Blade diameter
|
φ500mm
|
|
Operating voltage/frequency
|
380V/50Hz/3PH
|
|
Weight
|
6000Kgs
|
|
Packing
|
Seaworthy packing, wrapped by waterproof plastic films and air bubbles
|
|
|
