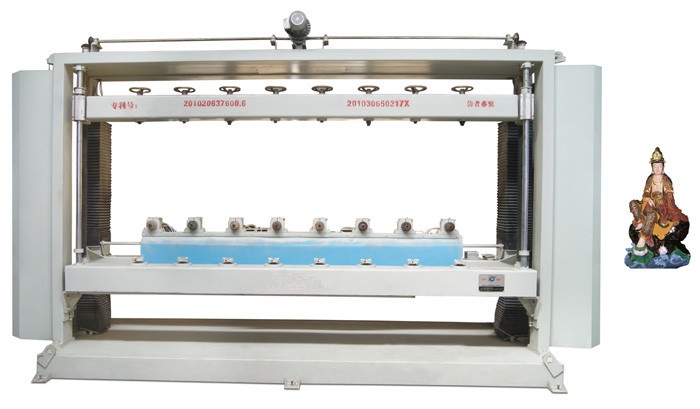

JNEM-8H Multihead CNC 3D Vertical Engraving Machine Technical data
Model number
JNEM-8H
Operation mode
Servo driving system
Dimension (L*W*H)
5300*1650*2800mm
Engraving (Workpiece) size
Φ400mm*1200mm*8pcs Φ600mm*1200*4pcs
Main motor power (water-cooling motor)
2.2Kw*8
Servo motor
Yaskawa (Japan imported)
Spindle
Water-cooling spindle
Spindle rotating speed
8000-24000rpm/min
Operating voltage
380V/50Hz/3Ph
Hourly water consumption
2m³
Weight
4000Kgs
Packing
Seaworthy packing, wrapped by waterproof plastic films and air bubbles (Regular) or contained in a plywood case (Custom)
Applications:
This multifunctional machine is used to engrave statues, figures, balusters, reliefs, artifacts in marble, granite, limestone, sandstone, basalt, onyx, wood, etc. It can be customized according to customer request.
