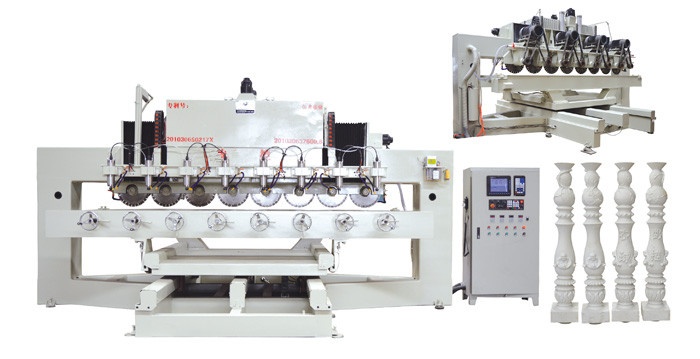

JNEM-8C Multihead CNC 3D Stone Column Cutting &Carving Machine
Technical data
|
Model number
|
JNEM-8C
|
|
Operation mode
|
Servo driving system
|
|
Dimension (L*W*H)
|
4000*5000*3000mm
|
|
Engraving (Workpiece) size
|
φ400mm*1200mm*8pcs
φ700mm*1200mm*4pcs
|
|
Main motor power (water-cooling motor)
|
2.2Kw*8 (3.7Kw/5.5Kw optional)
|
|
Servo motor
|
Yaskawa (Japan imported)
|
|
Spindle
|
Water-cooling spindle
|
|
Rough blank cutting main motor
|
5.5Kw*4
|
|
Blade diameter
|
φ300-400mm
|
|
Spindle rotating speed
|
8000-24000rpm/min
|
|
Operating voltage
|
380V/50Hz/3Ph
|
|
Total power
|
50Kw
|
|
Hourly water consumption
|
2m³
|
|
Weight
|
6000Kgs
|
|
Packing
|
Seaworthy packing, wrapped by waterproof plastic films and air bubbles (Regular) or contained in a plywood case (Custom)
|
Applications:
This multifunctional machine is used to profile and engrave statues, lions, figures, balusters, column caps, lines, reliefs, stone balls, furniture in marble, granite, limestone, sandstone, basalt, onyx, wood, etc.
It can be customized according to customer request.
